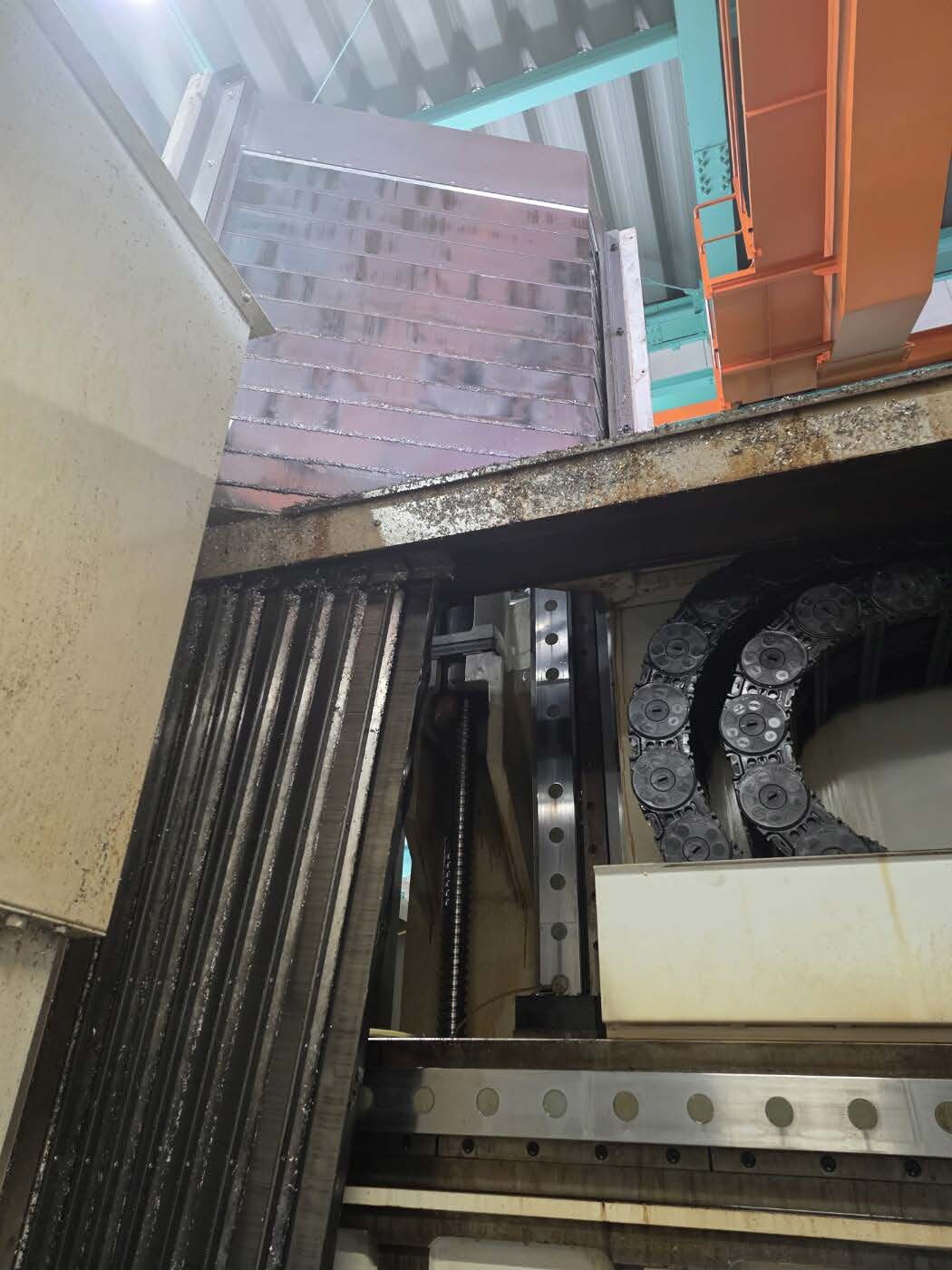

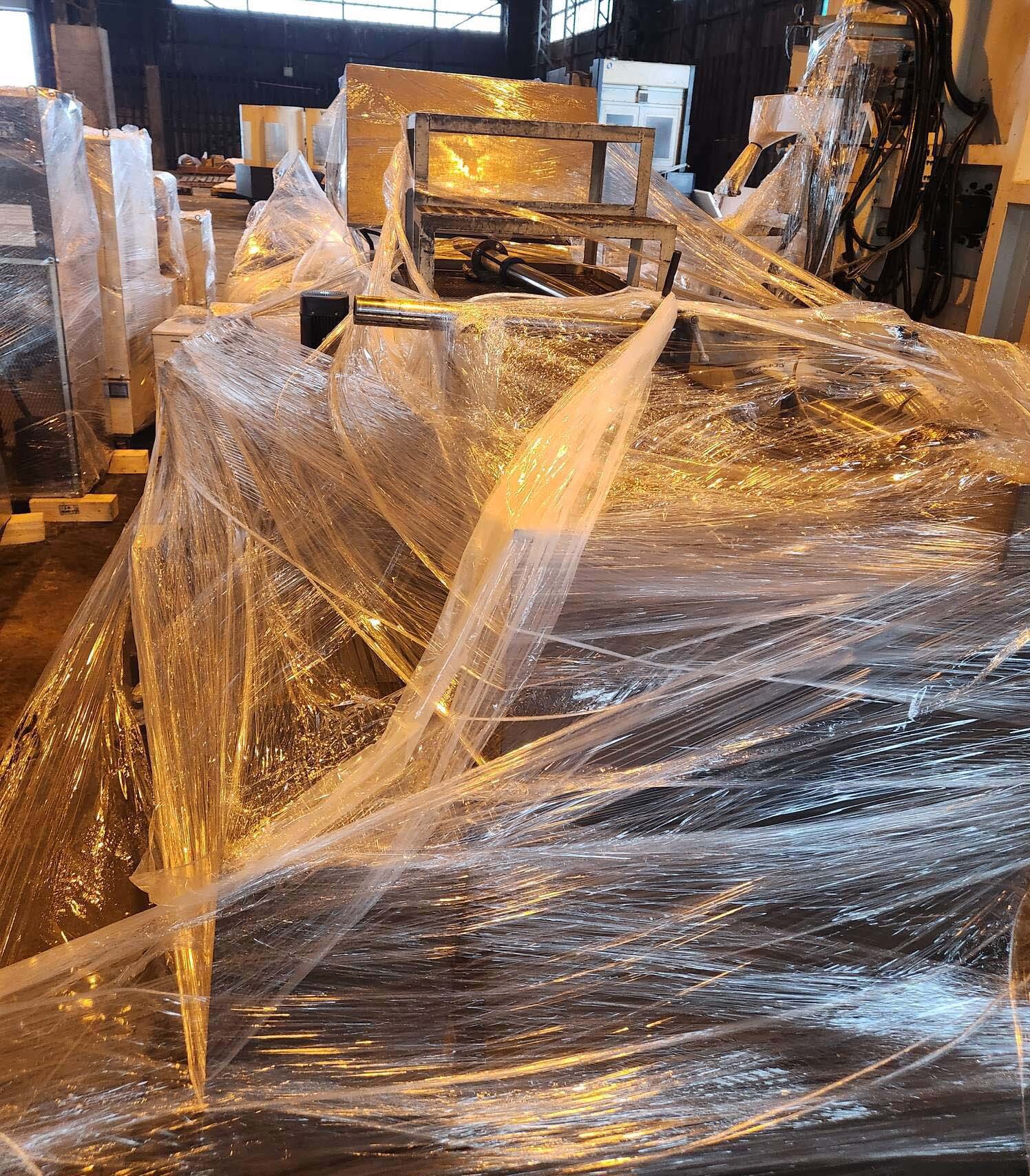

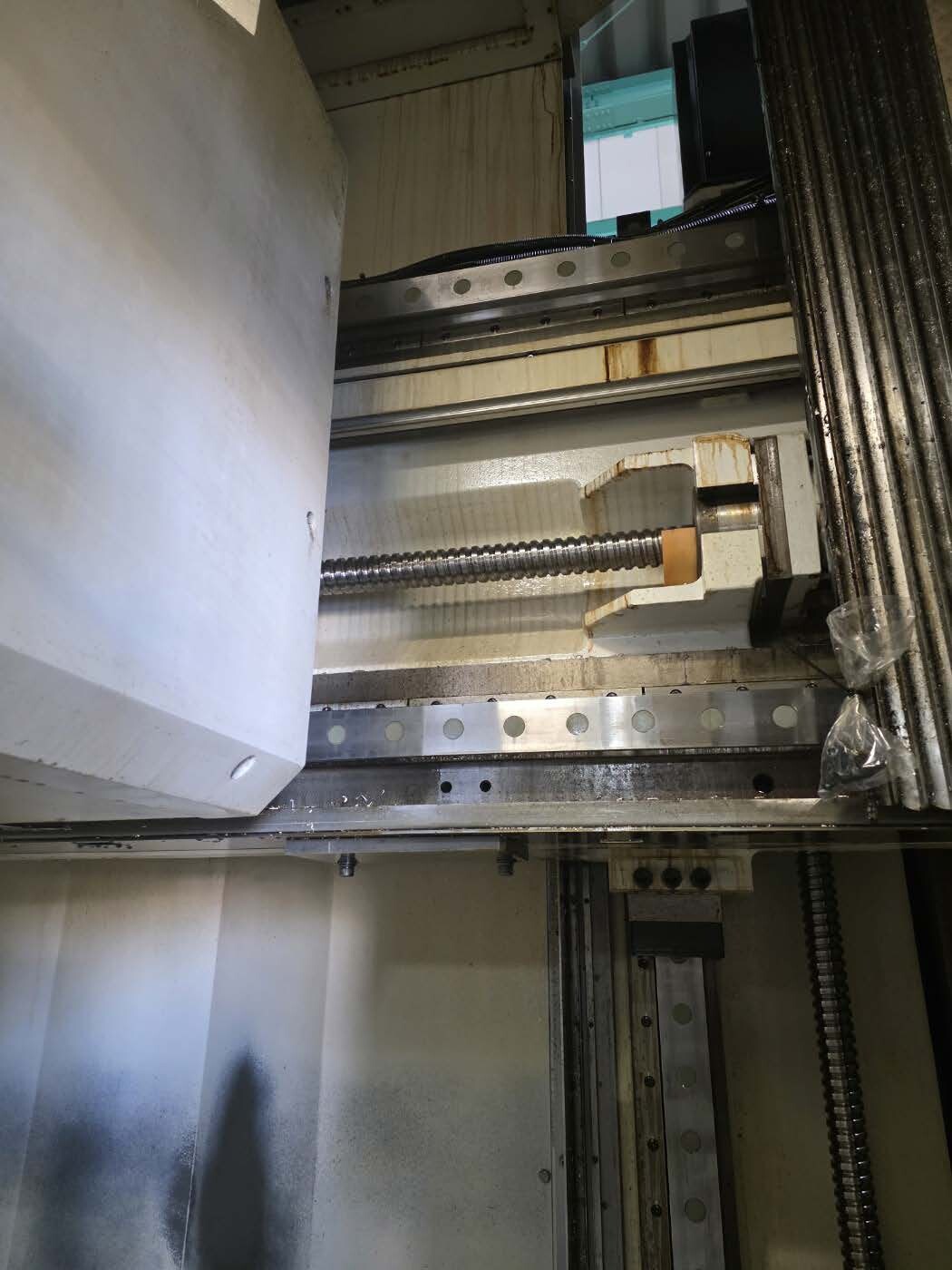

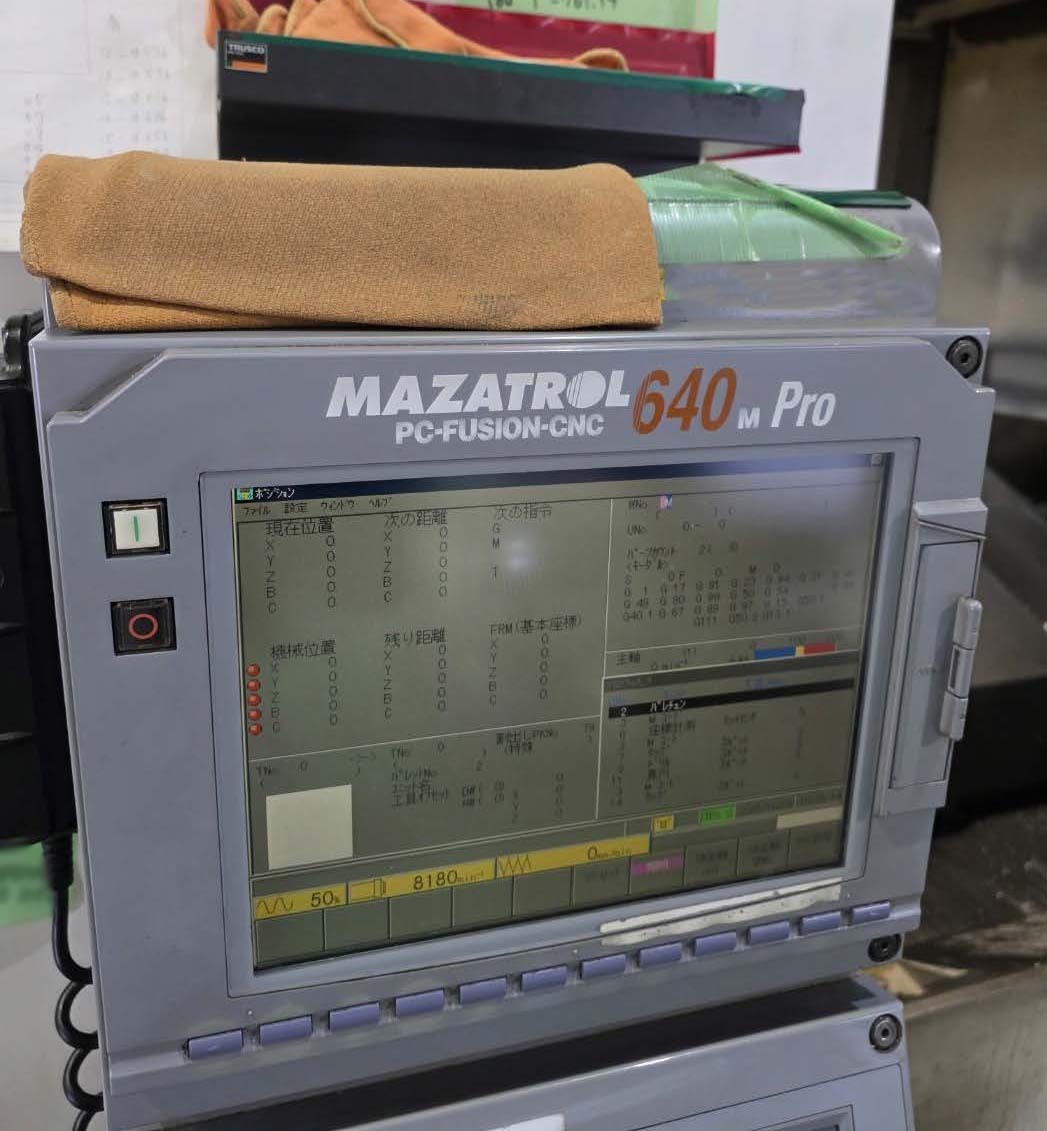

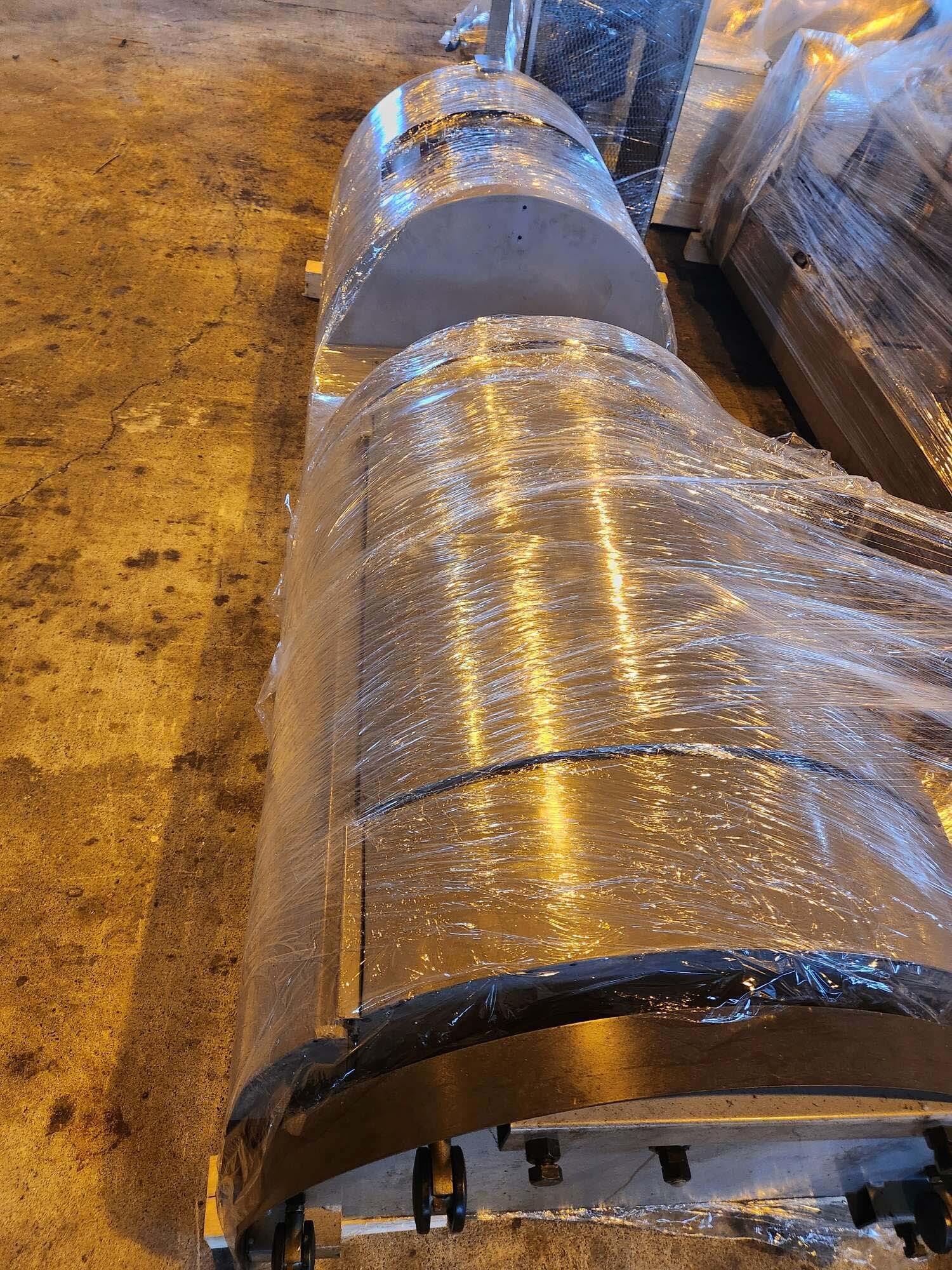

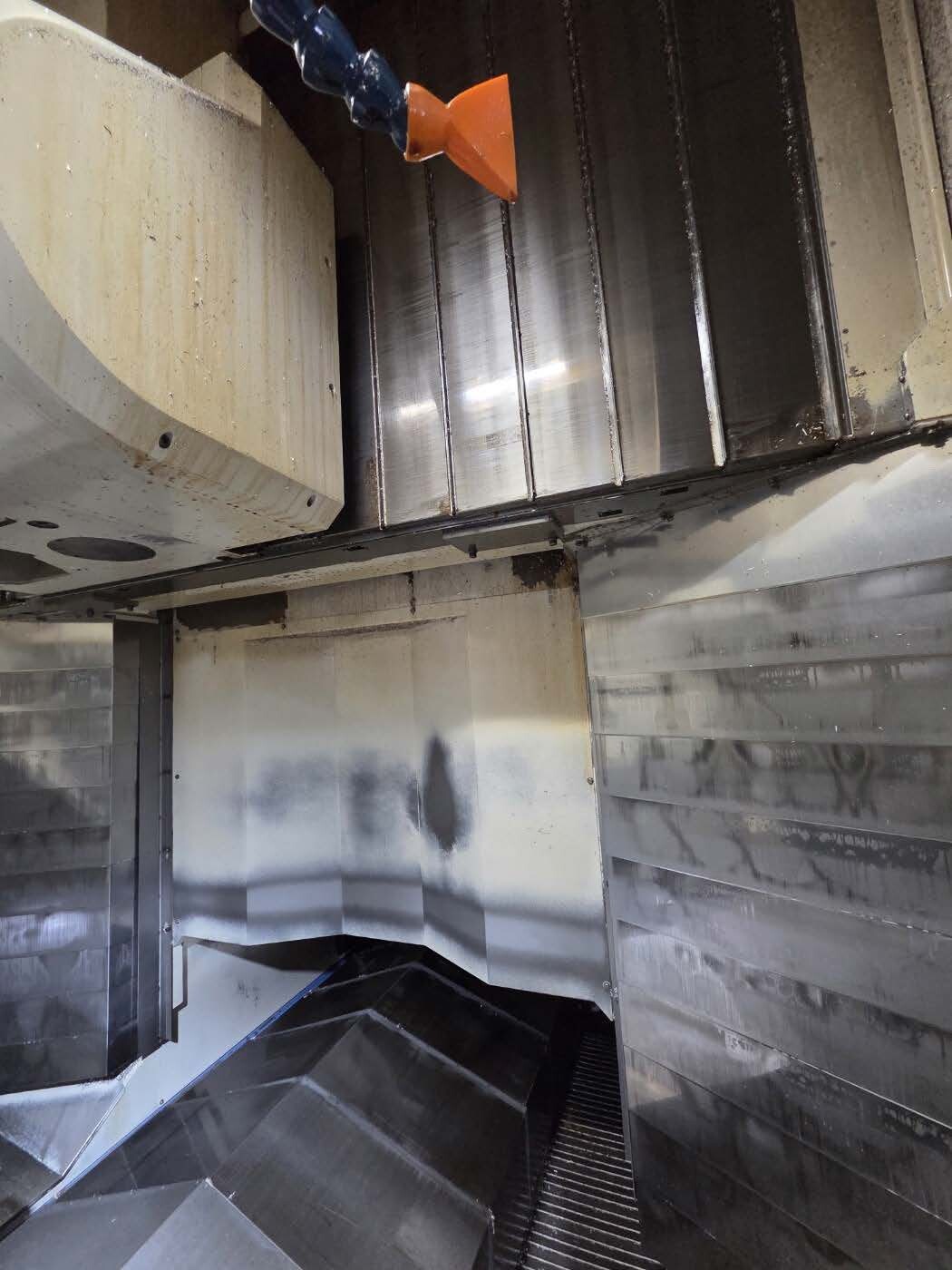

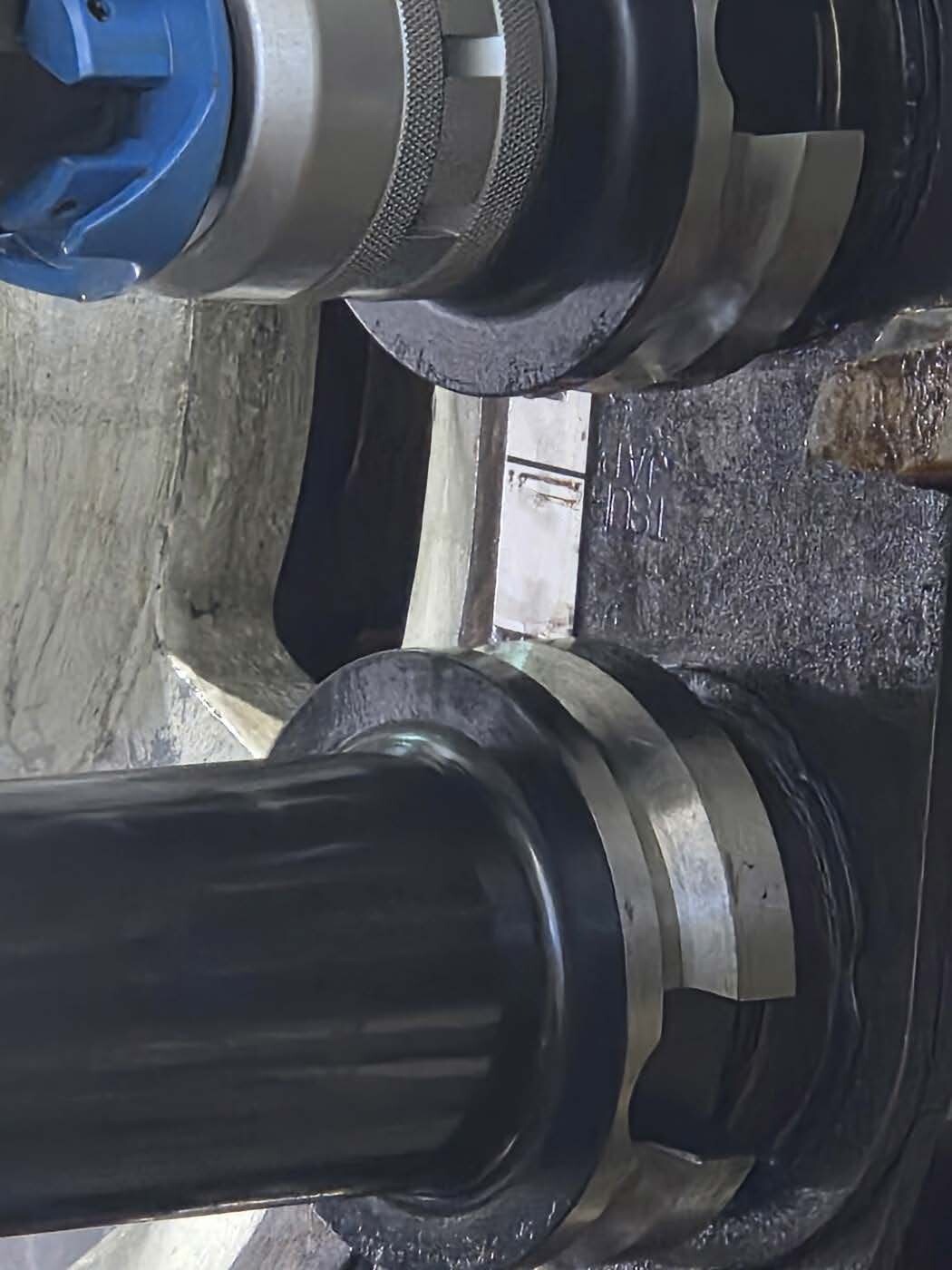

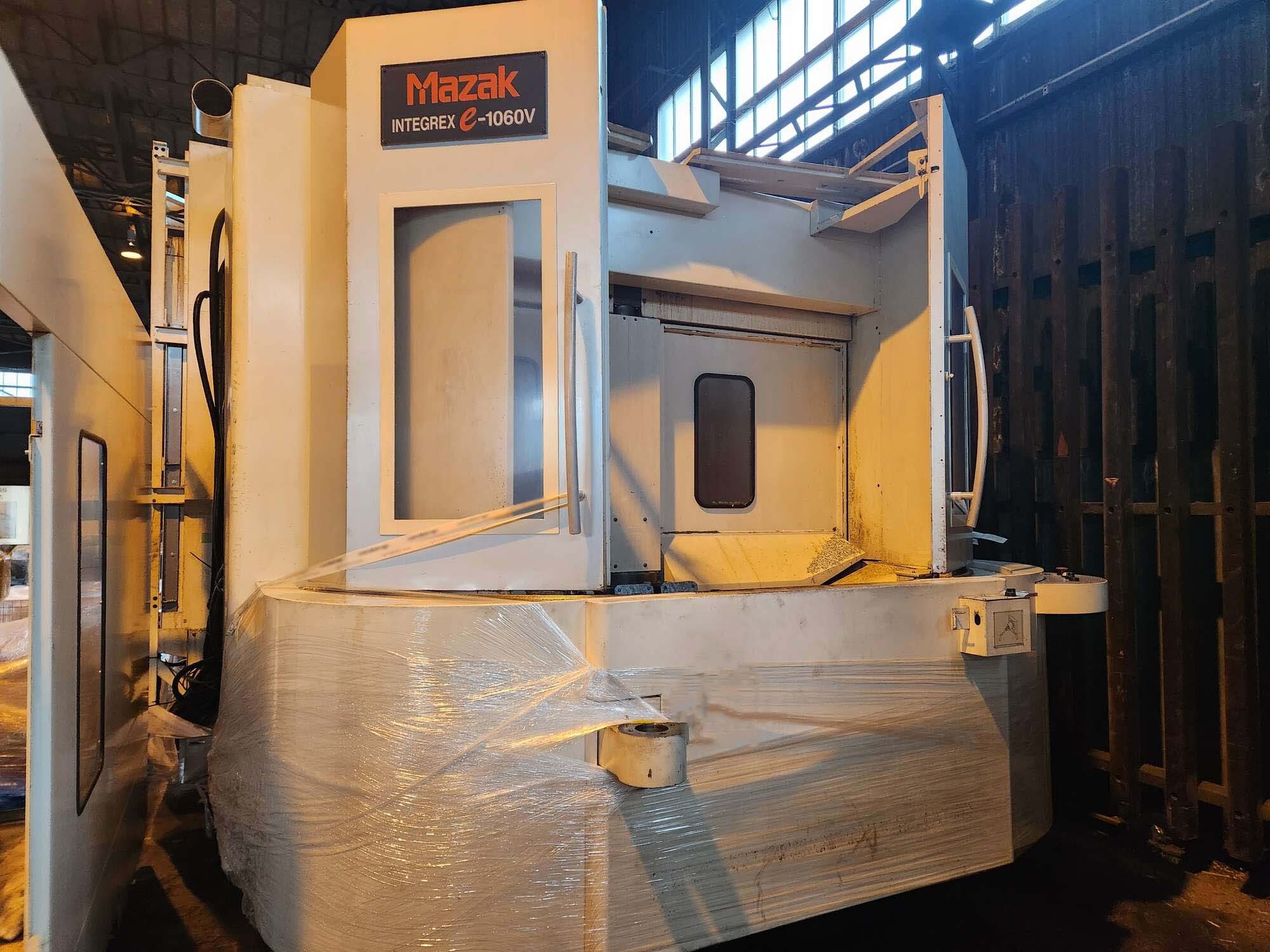

中古 MAZAK Integrex e-1060V #293825736 を販売中

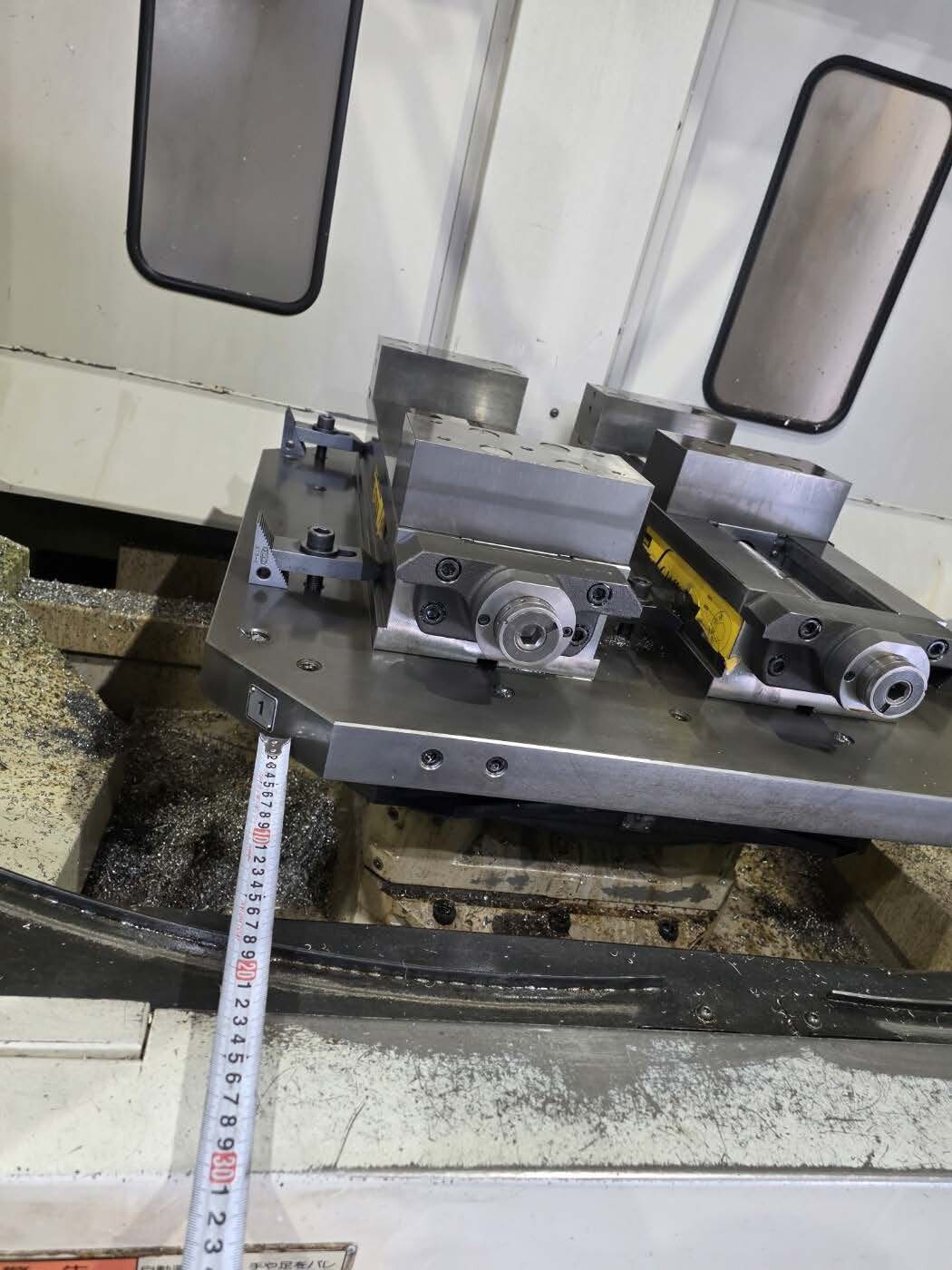

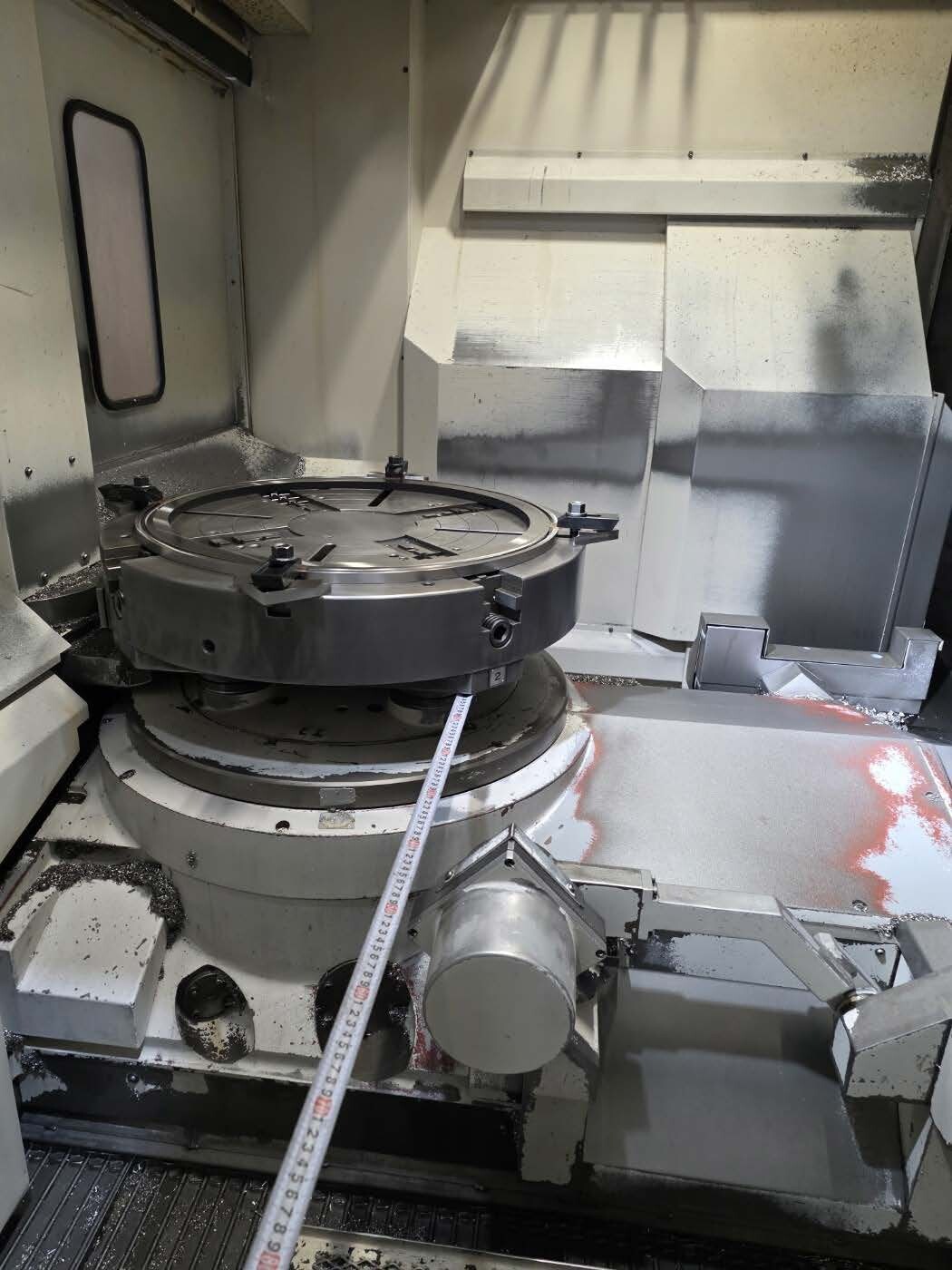

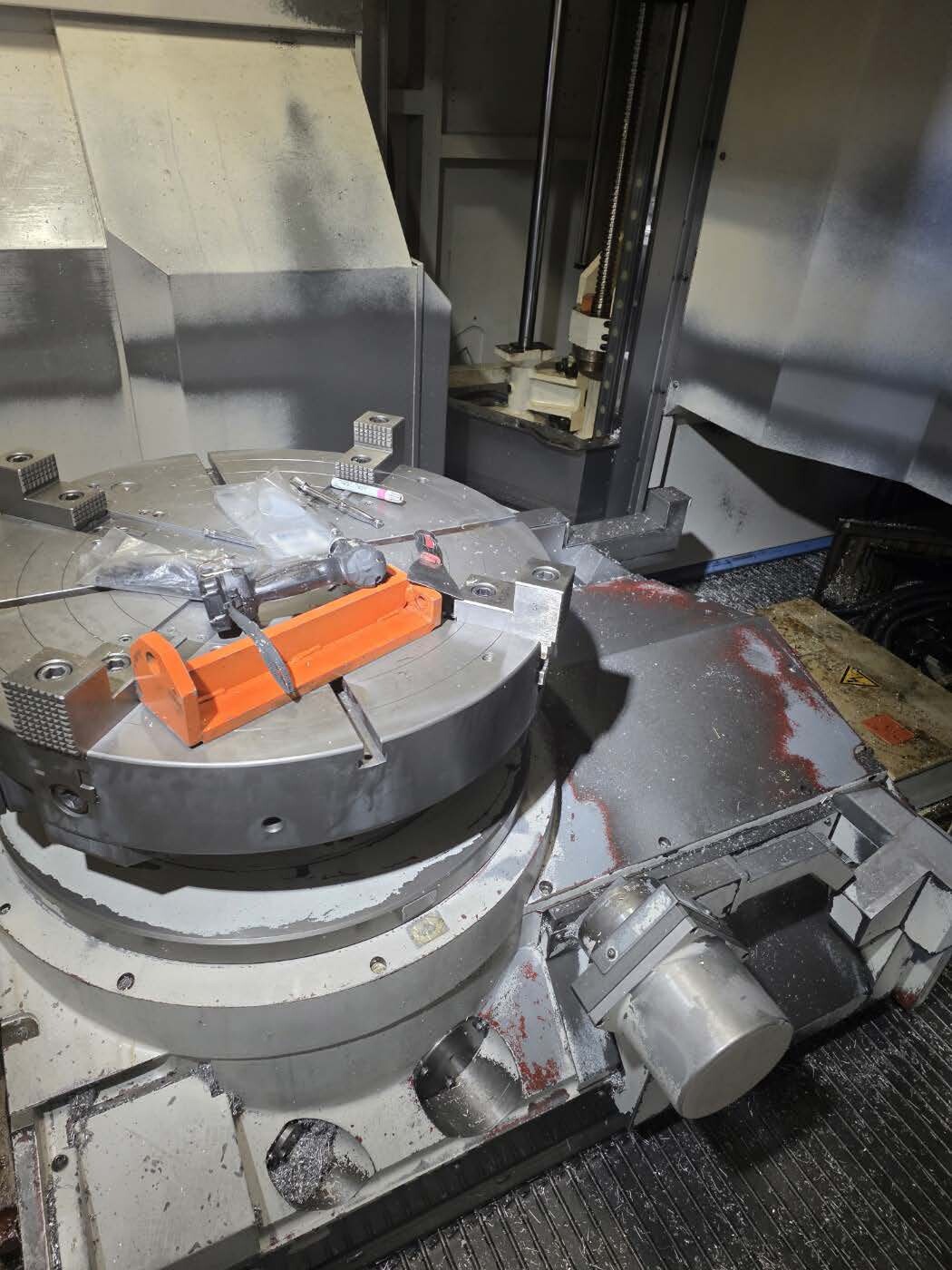

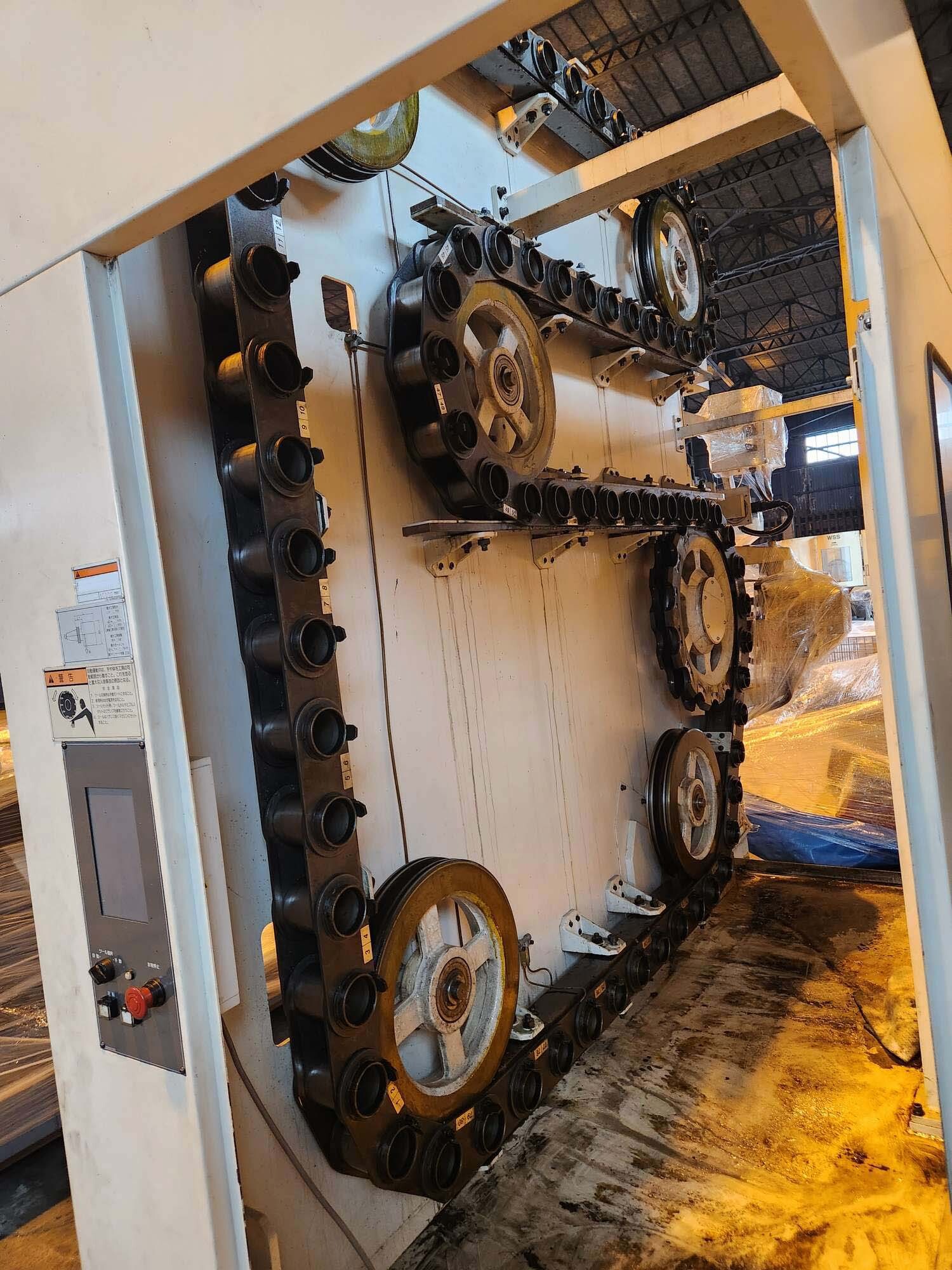

CNC Lathe system Axis travel: X-Axis: 1,525 mm Y-Axis: 1,060 mm Z-Axis: 1,345 mm Reference distance: B-axis rotation center to pallet center: 985 mm, 540 mm, 685 mm Top to surface: 100 mm - 1,445 mm, –200 - 1,145 mm Milling spindle: Spindle taper: 7/24 taper, (50) Spindle speed: 35 - 10,000 min RPM Speed range: 2 steps (Electric) Spindle bearing I.D: 100 mm Spindle motor: (AC inverter) 37 kW (50 HP) / 30 min rating; 30 kW (40 HP) continuous Rapid traverse speed: 40,000 mm/min Maximum cutting feed speed: 40,000 mm/min Table / Pallet system: Rotary table spindle speed: 5 - 600 min RPM Rotary table speed range: 2 steps (electric) Rotary table bearing I.D: 457.2 mm Rotary table motor (AC inverter): 37 kW (50 HP) / 30 min, rating 30 kW (40 HP) continuous Pallet change time: 10 sec Pallet change repeatability: ± 5 µm < Pallet change mutual difference: (Z-axis direction accuracy) 15 µm < Table indexing: 0.0001° x 3,600,000 Table indexing time: 1.95 sec / 90° ATC / Tool magazine: Capacity: 40 tools standard, 80 / 120 tools Tool shank: MAS BT50, CAT50, DIN 50 Pull stud type: Yamazaki ANSI Chip time: 5.5 Sec - 6.3 Sec Tank Capacity: (2) Lubrication oil tank: 3 L Spindle cooling oil tank: 70 L Hydraulic unit tank: 46 L Coolant tank: 900 Noise level and cutting condition: Noise level: 79 dB Tool Face: Mill (Ø160) Material: Aluminum Spindle load: 70% Spindle speed: 4,000 min RPM Feed rate: 1,400 mm / min Utilities: Frequency: 50 / 60 Hz ±1% Air pressure: 0.5 - 0.9 MPa (5 - 9.0 kgf / cm²) Air consumption: 700 L/min (ANR) Air dew point temperature: ≤ -17°C Power supply: 200 / 220 V, 380 / 400 / 415 / 440 V, ±10%, 460 / 480 V ±10% 2003 vintage.
