中古 SATISLOH Satis 1200 DLS #9268227 販売用

ID#: 9268227

メーカー:

SATISLOH

モデル:

Satis 1200 DLS

カテゴリー:

EVAPORATORS

ビンテージ:

2001

機器の詳細:

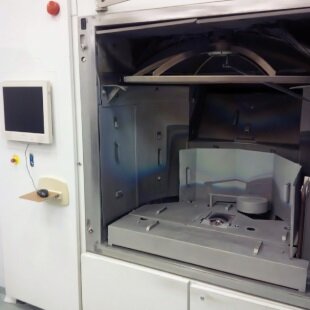

Vacuum coating system

Pumps:
Rotary vane pump: EDWARD E2M175
Roots pump: EDWARD E1200
Diffusion pump: BALZERS 630
Oil vapor barrier
VAT Plate valve

Electron beam gun with CV-6S supply
Correction aperture
Substrate heating (Top)
630 Plate valve
Rotating basket (For 6 segments)
Inner lining (Double, floor panels once)
Quartz measuring head
Measuring tube IMR265
Gas inlet valve MKS 179BX12CS32BMSPC1

Control system:
SIEMENS Simatic S7-300
Control cabinet
Mouse / Keyboard

POLYCOLD PFC-1102 HC Cryopump
For meissner trap and oil vapor barrier

Connections for hot and cold water supply
Compressed air connection
EUROKLIMAT TA Chiller

Single anti-reflective coating MgF²
40 Minutes / Glass side
Maximum 168 glasses

Super anti-reflection (Green-yellow reflex)
3 Layers of MgF² and 3 layers of TiO²
65 Minutes / Glass side
Maximum 168 glasses

Accessories:
(44) Domes, 65 Dia and smaller
(19) Domes, 70 Dia and smaller
(6) Domes, 75 Dia and smaller
(780) Receiving rings, 50-65 Dia
(300) Receiving rings, 70 Dia
(80) Receiving rings, 75 Dia
Rotating basket

2001 vintage.
