中古 AMAT / APPLIED MATERIALS / HCT E500SD-B/5 #9193773 販売用

ID#: 9193773

モデル:

E500SD-B/5

ビンテージ:

2011

機器の詳細:

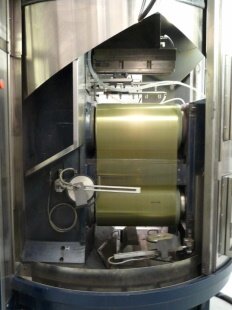

Wire saw

Water input:
Input pressure: >2.5 bar
Input temperature: <9°C
Cooling unit power: 150 kW
Incoming water flow (without cooling compressor): 18.5 m³/h

Machine:
Wire speed / Acceleration: 18*/5 m/s / m/s²
Wire guides length: 520 mm
Wire guides diameter: 300 mm
Horizontal working space: 360 mm
(4) Wire guides
Wire guides drives power: 2x61 kW

(2) Tables:
Travel (depends on clamping): 290 mm
Cutting speed: 0-9000 um/min
Fast table speed: 0-500 mm/min
Hydraulic passive clamping system

Wire:
(8) Pulleys
Wire tension: 0-30N
Wire length: 640 km
Wire web width: 500mm

Slurry:
Tank capacity: 550 lit
Pumping capacity: 2x160-200 * (1,6 kg/dm3) kg/min
Pump power: 3x7.5 kW
Pumping speed adjustment: 0-100%
(3) Pumps
(6) Manifolds in slicing room

Frame & others:
Stainless steel
Sliding doors
Color of frame and panels: RAL 5011

Utilities:
Air pressure: 4 to 6 bar
Air flow (dry): Min 25 m3/h
Air exhaust (pipe ø150 mm): 3x100 m3/h

Cooling unit power: 150 kW
Incoming water pressure: Min 2.5 bar
Incoming water temperature (with cooling compressor): 20 (30 RFNS) °C max 20
Incoming water temperature (without cooling compressor): 9 °C Max
Incoming water flow (with cooling compressor): 10.3 m3/h
Incoming water flow (without cooling compressor): 18.5 m3/h

B5 Base with retrofit hardware
Diamond wire technology
Machine can run with 120 or 100 µm wire

Electrical hooking 50 / 60 Hz: 3x400 / 480
Average power (with cooling compressor): 208 kVA
Maximum power (with cooling compressor): 339 kVA
Average power (without cooling compressor): 156 kVA
Maximum power (without cooling compressor): 287 kVA
Grid failure safety option

2011 vintage.
