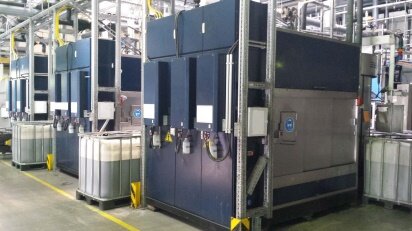

中古 AMAT / APPLIED MATERIALS / HCT 500SD-B/5 #9185496 販売用

ID#: 9185496

モデル:

500SD-B/5

機器の詳細:

Wire saws

Machine:
Wire speed / Acceleration maximum: 5 m/s / 18"
Wire guides length: 520 mm
Wire guides diameter: 300 mm
Horizontal working space maximum: 360 mm
(4) Wire guides
Wire guides drives power: 2 x 61 kW

Table:
Travel maximum (Depends on clamping): 290 mm
Cutting speed: 0 - 9000 mm/min
Fast table speed: 0 - 500 mm/min
Passive clamping system: Hydraulic
(2) Tables

Wire:
(8) Pulleys
Wire tension: 0-30 N
Wire length maximum (For 0 160pm): 640 km
Wire web width typical: 500 mm

Slurry:
Tank capacity: 550 liter
Pumping capacity maximum (1,6 kg/dm3): 2 x 160-200 * kg/min
Pump power: 3 x 7.5 kW
Pumping speed adjustment: 0-100%
(3) pumps
(6) Manifolds in slicing rooms
2008-2009 vintage.
